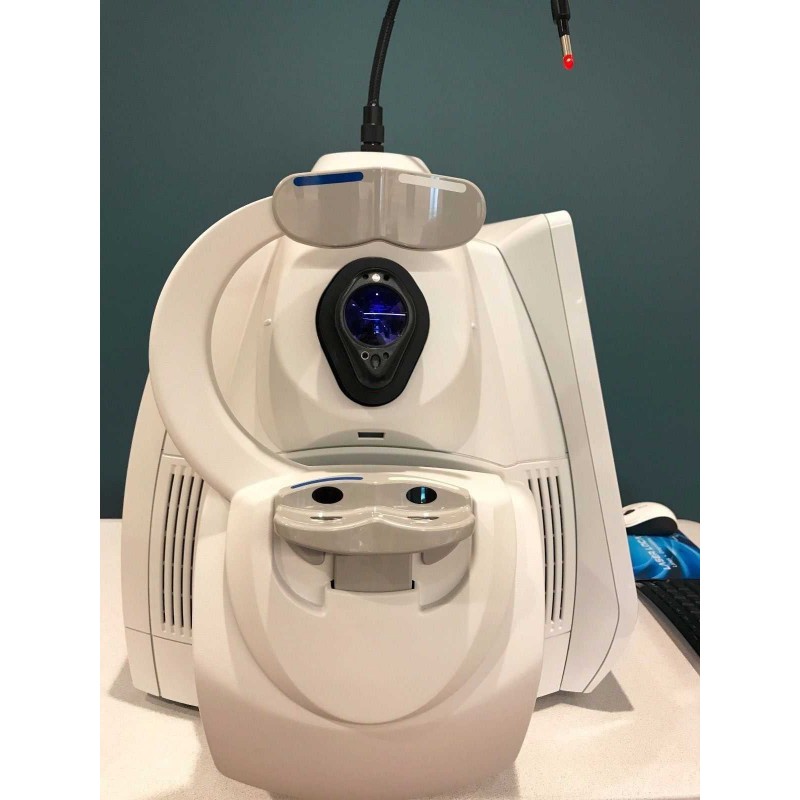

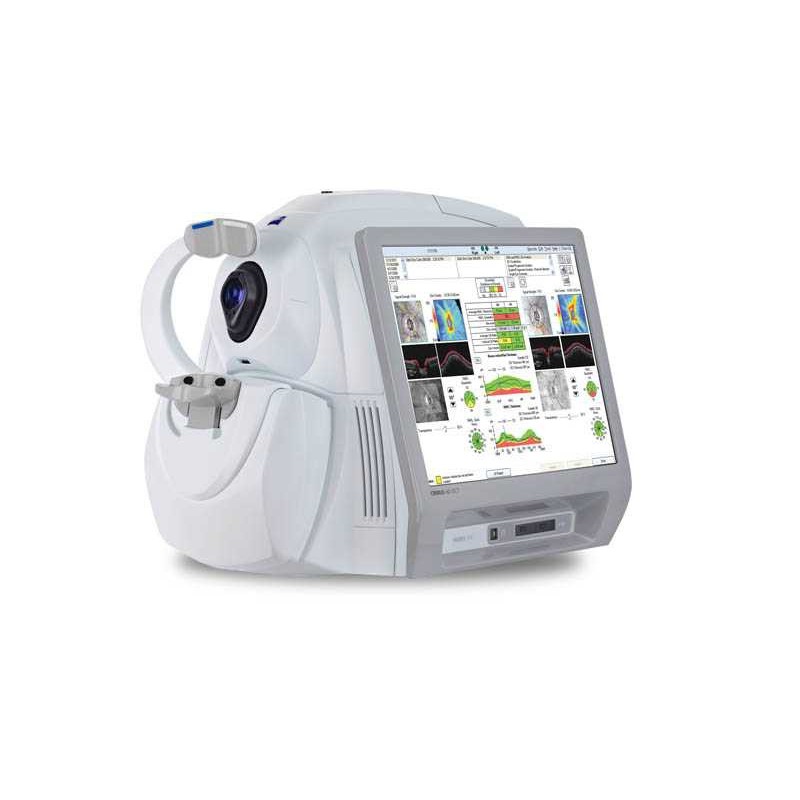

CARL ZEISS Cirrus HD-OCT 5000

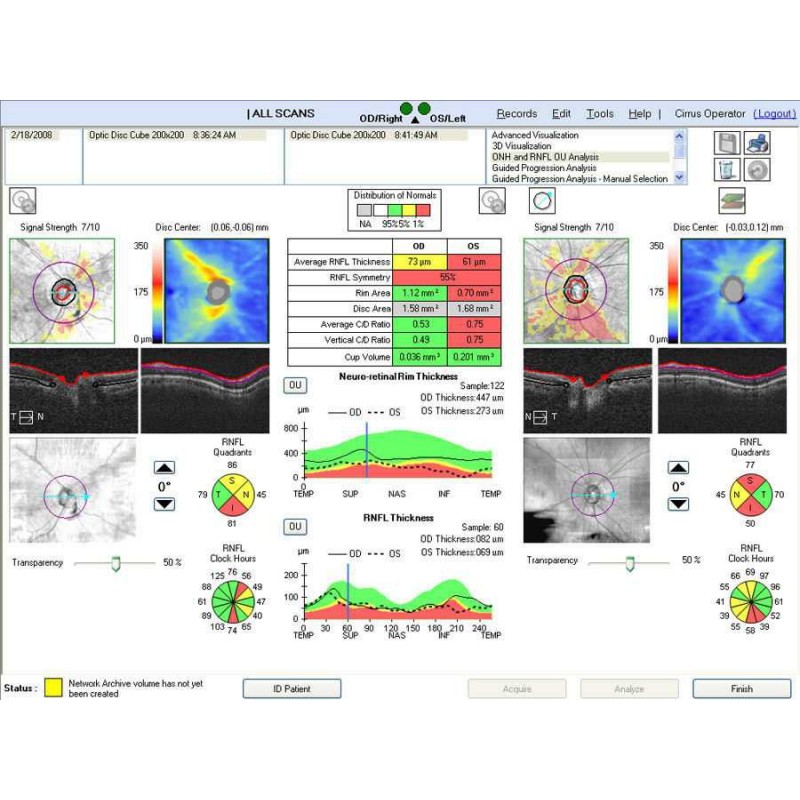

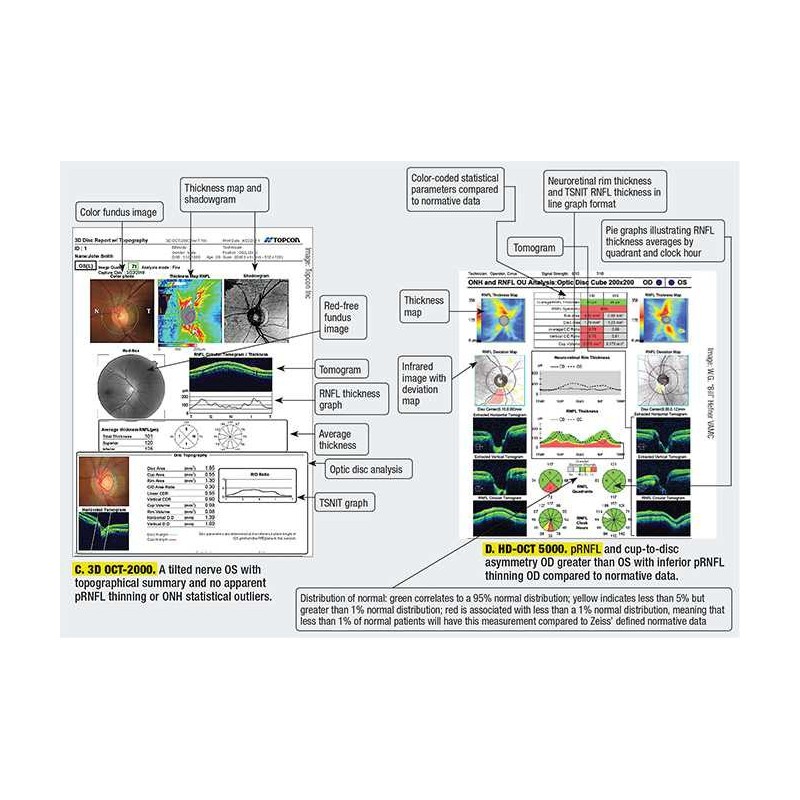

CARL ZEISS Cirrus HD-OCT 5000 provide highest resolution visualization capabilities and track retinal pigment epithelial integrity using Advanced RPE Analysis and assess glaucomatous loss with Ganglion Cell Analysis

Cirrus HD-OCT 5000 come with features an active eye-tracking mechanism that able to trace and compensate eye motion in real time and FastTrac retinal tracking to reduces eye motion artifacts without sacrificing patient

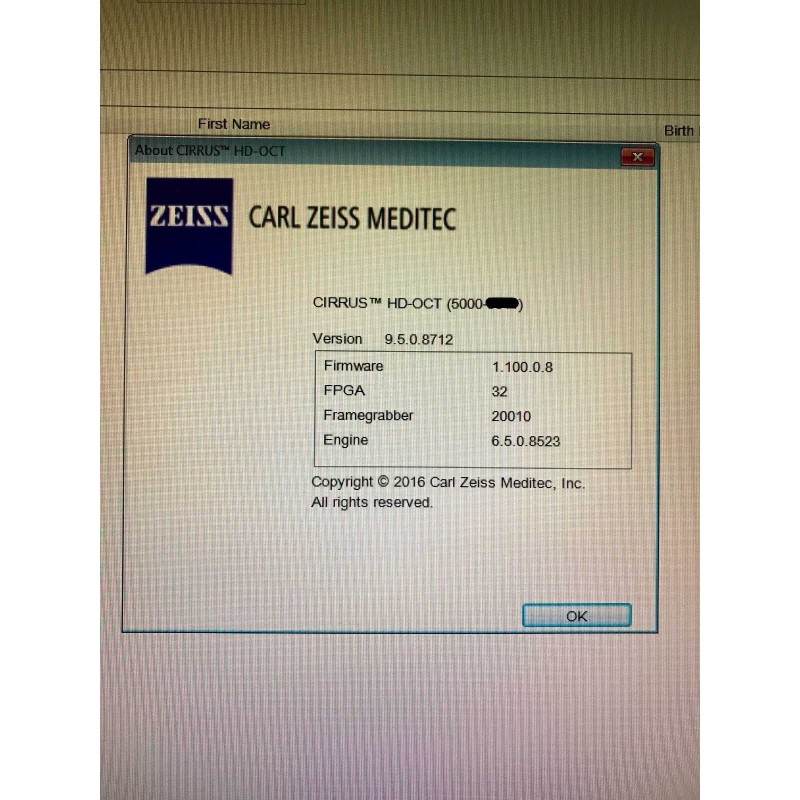

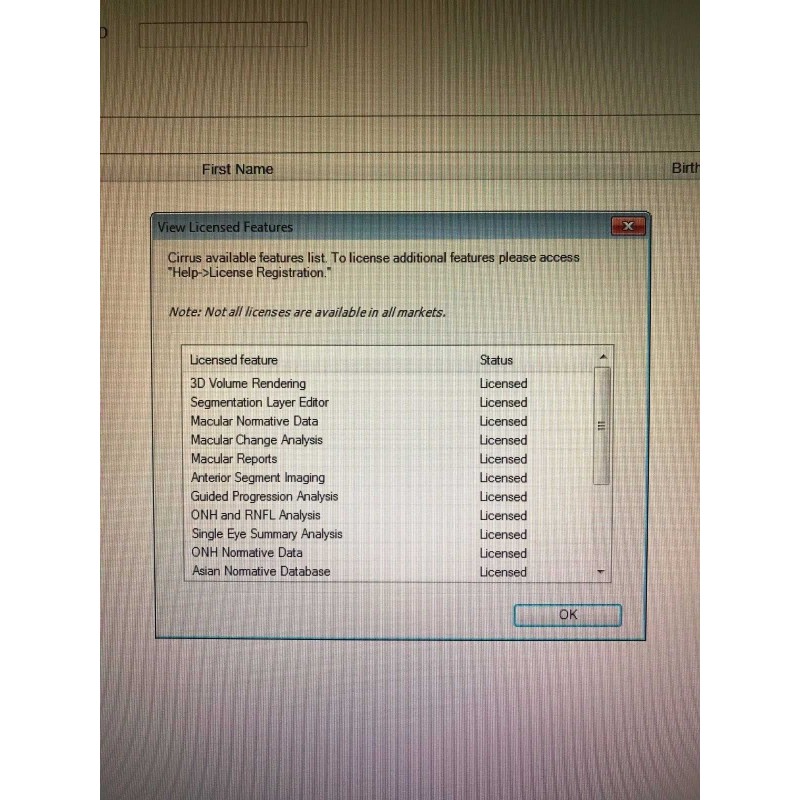

Cirrus OCT come with version 9.5 software can acquire 68,000 scans per second with fundus photos

This Cirrus HD-OCT 5000 completely refurbished by Zeiss trained technician

Specifications

• OCT Imaging
• Methodology: Spectral domain OCT
• Optical source: Superluminescent diode (SLD), 840 nm
• Scan speed: 27K- 68K A-scans per second
• A-scan: 2.0 mm (in tissue), 1024
• Axial resolution: 5 μm (in tissue)
• Transverse resolution: 15 μm (in tissue)

Fundus Imaging

• Methodology: Line scanning ophthalmoscope (LSO)
• Live fundus image: During alignment and during OCT scan
• Optical source: Superluminescent diode (SLD), 750 nm
• Field of view: 36 degrees W x 30 degrees H
• Frame rate: > 20 Hz
• Transverse resolution: 25 μm (in tissue)

Iris Imaging

• Methodology: CCD camera
• Resolution: 1280 x 1024

Include

• Cirrus HD-OCT 5000 Unit
• New Printer
• Mouse
• Keyboard
• Warranty Table
• Table
• all peripherals.
